Temperature chamber BINDER MK 720 – DFG

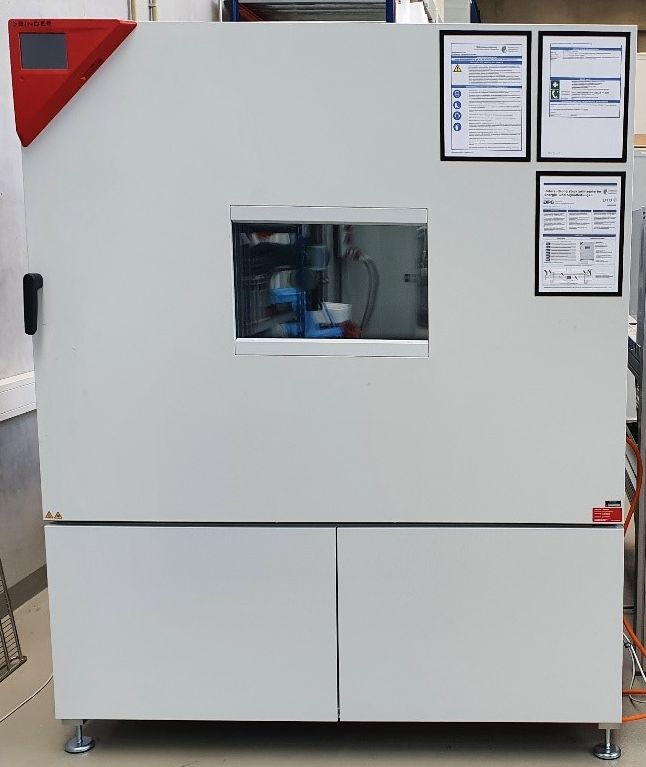

The MK 720 temperature chamber from BINDER GmbH has a reinforced floor to accommodate test assemblies weighing up to 250 kg. Both individual test objects can be placed loosely in the test chamber and test assemblies can be permanently mounted on a T-slot plate, e.g., entire gearboxes. For this purpose, the side walls are equipped with a large number of different access ports to insert both mechanical and electrical lines into the test chamber from the outside. The following table lists technical data of the temperature chamber.
| Technical data | |
|---|---|
| Temperature range | -40 to +180 °C |
| Maximum heat compensation at 25 °C | 3,500 W |
| Maximum load | 250 kg |
| Internal dimensions of test chamber WxHxD | 1,200 mm x 1,020 mm x 600 mm |
| Number of feedthroughs | 12 |
The temperature chamber is kindly provided on loan by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) as part of the project “Product development with sensor-integrated machine elements” with the project number 431606807.
